SEM serie

Industrial electromagnets

SEM series

Low absorption electromagnet for industrial use, SEM series.

 It holds ferrous objects when powered at the rated voltage.

 By removing the power supply the object is released

24Vdc

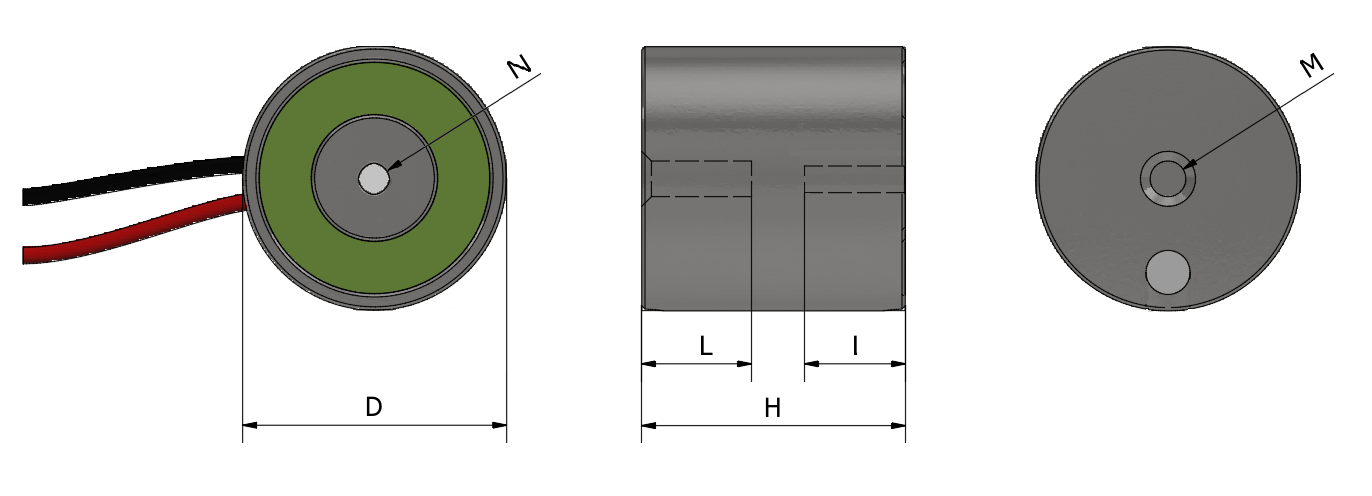

Diameter Height Holding force

Nominal power

 ED Fixing MxL Hole NxI Cable lenght Thickness armature Weight
mm mm N w % mm mm mm mm g
50 22 600 1.4 100 M8x10 6.1x10 200 7 275
60 33 1150 2.4 100 M8x20 6.1x10 200 8 565
70 39 1550 2.4 100 M8x25 6.1x10 200 10 930

* minimum values to obtain the maximum holding force

DxH
